Lab 1.1, Routing and DMZ

Configuring rw01

  • changing the champuser password: password123!
  • set hostname to rw01-charlotte(reference)
  • add sudo user charlotte:password123! (reference)

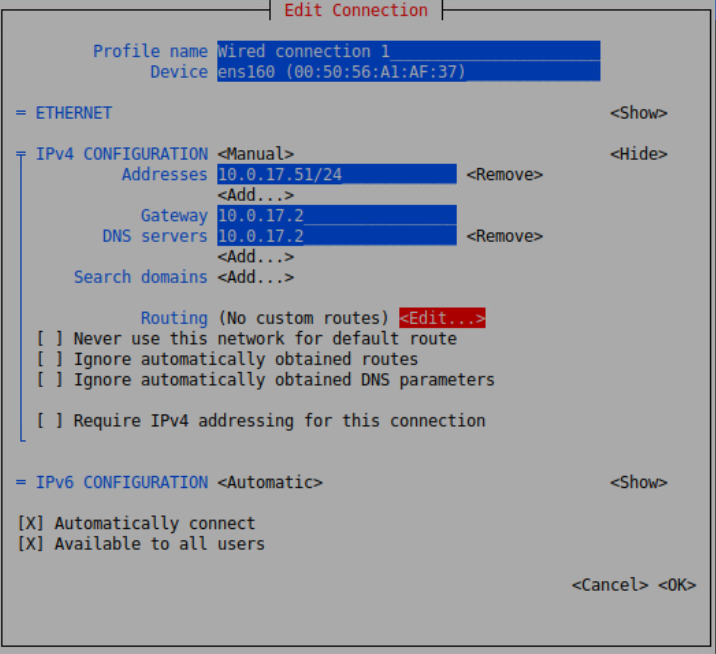

  • Make sure you have a static ip that matches the one in the IP assignments spreadsheet: use nmtui, set IP to 10.0.17.51/24 and gateway/DNS to 10.0.17.2

fw01, gateway/router/firewall (VyOS doc)

default creds: vyoz:Ch@mpla1n!22

set hostname

configure
set system host-name fw01-charlotte
commit
save

Repeat exit until you get to a login prompt. Then you should see your new hostname, so go ahead and log in back to configure.

configure interfaces

configure
set interfaces ethernet eth0 description SEC350-WAN
set interfaces ethernet eth1 description CHARLOTTE-DMZ
set interfaces ethernet eth2 description CHARLOTTE-LAN
set interfaces ethernet eth0 address 10.0.17.151/24
set interfaces ethernet eth1 address 172.16.50.2/29
set interfaces ethernet eth2 address 172.16.150.2/24

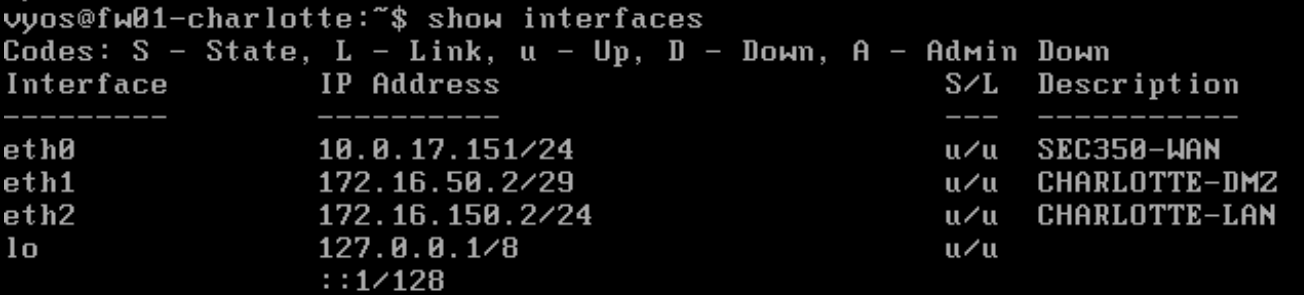

commit
save


configure gateway & DNS

configure
set protocols static route 0.0.0.0/0 next-hop 10.0.17.2
set system name-server 10.0.17.2
commit
save

Configuring NAT and DNS Forwarding for DMZ

configure

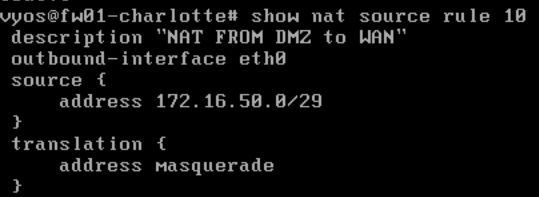

set nat source rule 10 description "NAT FROM DMZ to WAN"
set nat source rule 10 outbound-interface eth0
set nat source rule 10 source address 172.16.50.0/29
set nat source rule 10 translation address masquerade
set service dns forwarding listen-address 172.16.50.2
set service dns forwarding allow-from 172.16.50.0/29
set service dns forwarding system
commit
save


web01, web server

basics

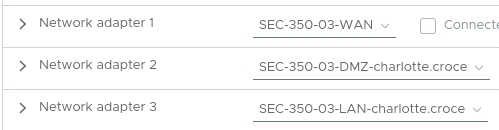

  • Set adapter to DMZ:
    default creds: root:Ch@mpl@1n!22

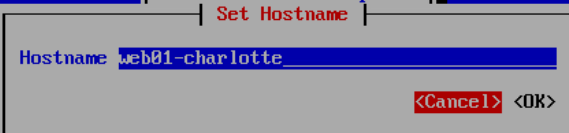

  • set hostname to web01-charlotte(reference)

  • add sudo user charlotte:password123! (reference)

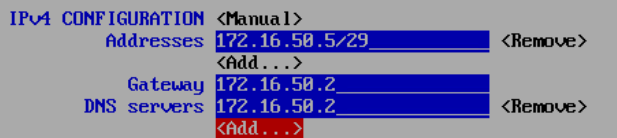

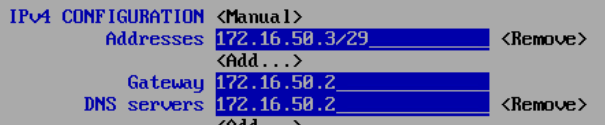

  • nmtui

configure httpd

on rw01, testing web service

  • any address in your DMZ should route via fw01’s WAN interface. We do this with a static route on rw01
  • anything addressed to the 172.16.50.0/29 network will go through the 10.0.17.151 router
sudo ip route add 172.16.50.0/29 via 10.0.17.151
sudo systemctl restart NetworkManager
traceroute 172.16.50.3

log01, rsyslog server

log01 will be initially in the DMZ, later we will change this to a segmented network area

basics

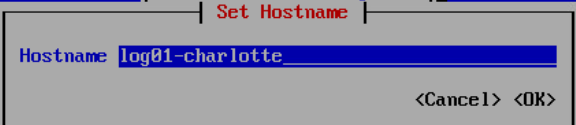

  • set hostname to log01-charlotte(reference)
  • add sudo user charlotte:password123! (reference)

rsyslog setup


allow UDP and TCP 514 for syslog traffic

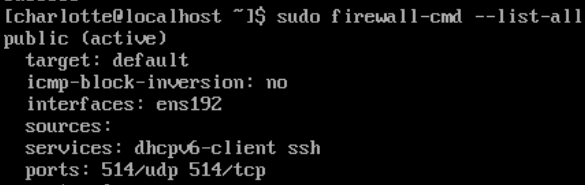

sudo firewall-cmd --add-port=514/tcp --permament
sudo firewall-cmd --add-port=514/udp --permament
sudo firewall-cmd --reload

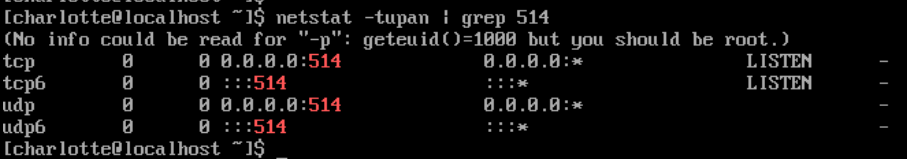

On log01, the /etc/rsyslog.conf file needs to be modified to receive syslog messages over ports 514 tcp and udp. Uncomment the appropriate lines (see below) and restart the rsyslog service. image

on web01, configure log forwarding to log01

  • sudo yum install rsyslog

  • Create the following file: /etc/rsyslog.d/sec350.conf and restart rsyslog on web01 image

  • monitor incoming logs on log01: tail -f /var/log/messages

  • create test log on web01: logger -t test TESTFROMWEB01TOLOG01
