rsyslog configuration

an open-source software used on linux computer systems for forwarding log messages through a network.
sudo apt/yum install rsyslog

server

open ports 514 on server

sudo firewall-cmd --add-port=514/tcp --permament
sudo firewall-cmd --add-port=514/udp --permament
sudo firewall-cmd --reload

enable log input modules

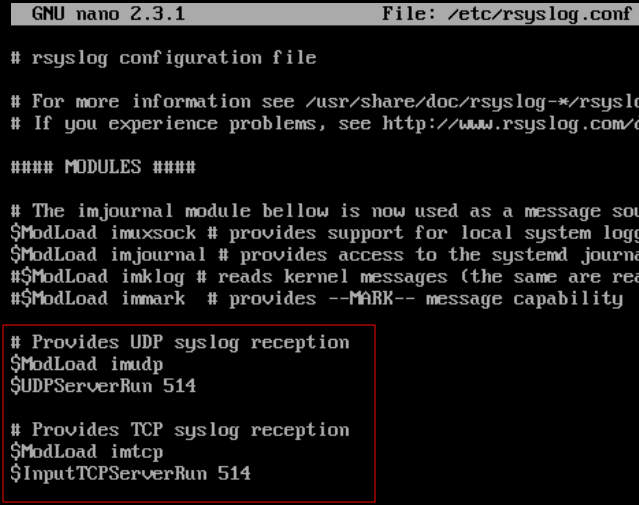

the /etc/rsyslog.conf file needs to be modified to receive syslog messages over ports 514 tcp and udp. Uncomment the appropriate lines (see below) and restart the rsyslog service.

monitor for incoming logs

tail -f /var/log/messages

client

configure log forwarding to server

rsyslog needs to be installed on client as well: sudo yum install rsyslog

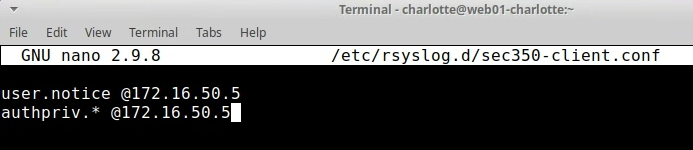

create the following file: /etc/rsyslog.d/sec350.conf, add the line user.notice @172.16.50.5, and restart rsyslog

NOTE: the line in sec350.conf means:
user = syslog facility
notice = syslog priority
@=UDP, @@ means TCP, so we are only going to send UDP
172.16.50.5 = Remote Syslog Server

loggin authpriv messages on linux systems

create test log

logger -t test TESTLOG123
